Ocean Xplorer®
Long-range, global expedition and
yacht support vessels
235' / 72 meter
Custom Expedition Yacht
Conversion

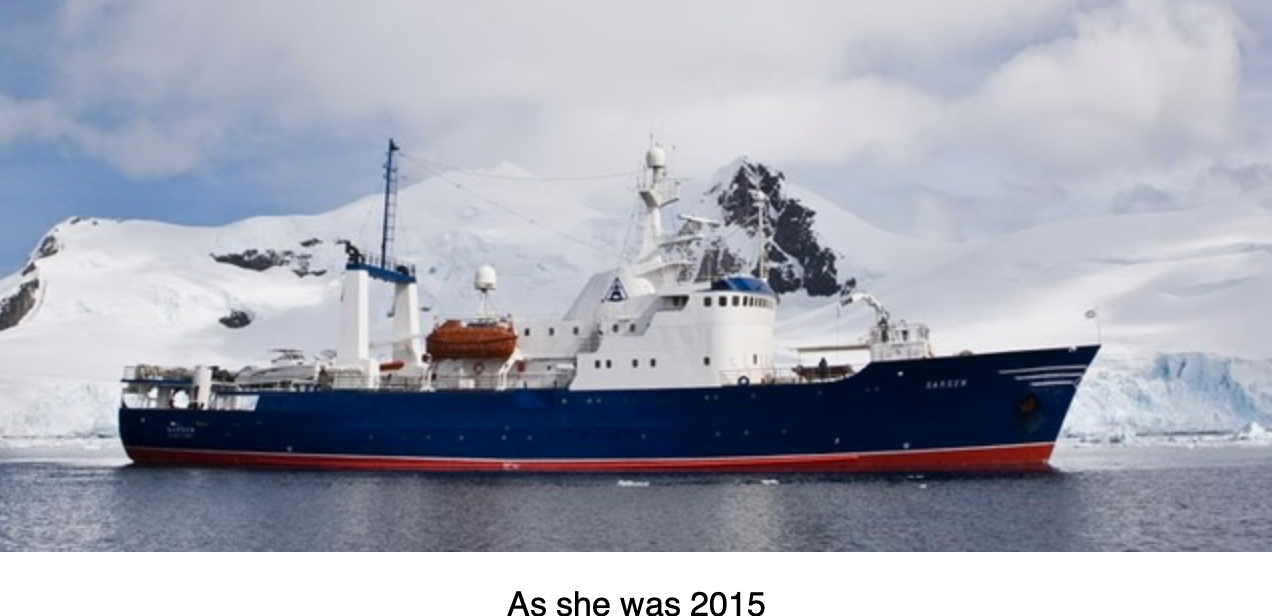

Owner spent millions on the current re-fit before leaving project 80% finished, thus the opportunity. Built 1970 by Mjellem & Karlsen Norway for Norwegian Government as an ice-class Fisheries patrol vessel. The transformation to a Global Expedition Vessel focused on underwater exploration is ready to be completed. Everything apart from Rolls-Royce/Bergen main engine has been replaced including all wiring, electric systems, pumps, piping and hydraulics. Finishing can be accomplished in 6-9 months.
Click for next slide
* Extremely rugged and proven ocean going vessel
* Currently configured with 4 over-sized suites, each with its own living room, can be reconfigured to suit new owner- easily would convert to 6 suites.
*Rolls Royce / Bergen main Engine 2200 hp rebuilt 2015
* Bow and Stern thrusters
* 8 ton A-Frame with mini sub launch system, plus custom deck rails for sub placement and storage.
* 6+ ton Bow Helipad with refueling and fire systems, that folds inward to conform to bow shape.
* New CAT generators.
* 7,000 nm range for global adventures in extreme safety and comfort.
* Built to DNV 1A1, Ice-C, E0 (currently lapsed Class)
1986 Bergen/Rolls Royce KRMB-9 Motor 7723 (Engine 1)
Length 235 ft 6 in Beam 42 ft 6 in
Cruise: 12 kn Top Speed 14.5 kn Range: 7000 nmi
Fuel 92,460 gal Water: 23,247 gal
Power: 2250 hp Propeller Type: 4 Blade
Accommodations
Single Berths: 8
Heads: 20
Double Berths: 19 Cabins: 27
Builder: Mjellem & Karlsen Verft AS
Flag Of Registry: Saint Vincent And The Grenadines
Designer: Norwegian Government
The Conversion
Previous owner bought this vessel for a reported 7 million Euro and has put several million Euro into upgrading the ship. The 'heavy-lifting' and Class-approved engineering has been done, saving the new owner many, many months of project work and project management. The vessel can still be customized to meet a new owner's mission and tastes.
This is probably a 6-9 month project to completion.
Engines
Main Engine:
Roll Royce / Bergen Type KRMB-9 Motor 7723 1655 kW (1986 )
GEAR BOX Ulstein Type 600AGC, SN 1279, Red 50:1, Year (1986)
SHAFTS & PROPELLERS Original shaft and 4 blade VP propeller
Generators:
CAT C32 590 BkW
CAT C32 874 BkW
CAT C18 492 BkW
Engines and mechanics:
o Main engine is a Bergen/Rolls-Royce diesel from 1986
o Gensets are 2 x Caterpillar, both new.
o The ship has bow and stern thrusters.
• Survey findings
The hull:
o Hull has been dry docked and is sandblasted twice, repaired where
needed and painted.
o Hull is measured and found solid, both outside hull and all inside hull
walls.
Built by Mjellem & Karlsen in Norway 1970 and has DNV ice class. Hull is steel and superstructure is aluminium.
New Heli-Deck
o Helicopter deck is new and has hydraulic gangway for passengers to easily move from helicopter deck to reception area in the bridge. The deck also has a fueling and foam fire system. The deck is hinged and conforms to the bow.
Diver Beach Club
Diver “beach club” in the stern can be lowered 2 meters under sea level. There is room in the hull for a dive decompression chamber.
Interior
Accommodation for up to 8 guests in 4 cabins, and up to 38 crew in 23 crew cabins. It is this broker's opinion that fewer crew cabins are needed, even with specialist dive-masters and sub operators. Crew space can be re- configured.
The guest cabins are currently configured as suites with their own living rooms. Experience suggests that guests usually prefer to be in the ship's salon rather than in their cabins. These suites could be reconfigured into more luxury guest cabins.
Much of the furniture and accommodation fabrication is in storage in the shipyard warehouse. 8 x Single and 15 x Double cabins
GALLEY, HOSPITAL, SAUNA, CREW MESS OFFICER’S MESS, CONFERENCE ROOM, GYM, TV ROOM, SUN LOUNGE/DINING ROOM
Interior:
o High quality kitchen and kitchen machines
o Well-equipped cleaner/dryer room with professional washing machines.
Systems
Systems:
o All ventilation and AC are new.
o All the navigation equipment (Furuno) is in storage.
o Security systems and equipment is in storage.
o Advanced and efficient water makers and high-pressure water tanks. o Fuel capacity for up to 7.000nm.
Electronics
2 x Sailor RT6222
Jotron TR 810
Phontec SR 8200
BNWAS BW-800
Sailor 6120 SSA with GLONASS SAAB R5 SOLID
NAVIPOL Binnacle w/ Jupiter compass Navigat X Mk1
M/Y SPECS
NAVIKNOT 450D
Tyfon Signal controller Ti98 Seabat 7125 Multibeam Skipper GDS 101
S Band Visionmaster FT
X Band Visionmaster FT
Ice Radar SIGMA 6
Sperry Visionmaster ECDIS-E Koden KJB 920
SAILOR 6390
Unicont SPb Periscope Weather System Indicator
